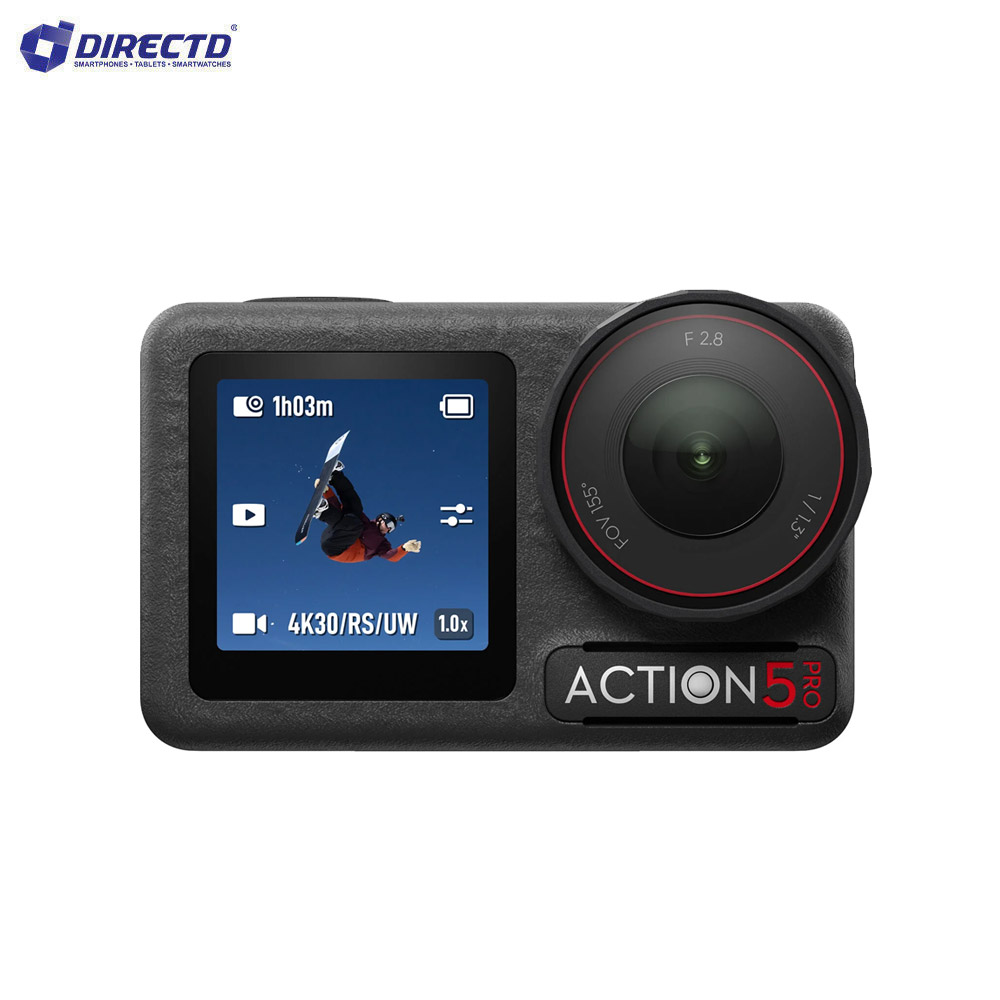

DJI Osmo Action 5 Pro

General

• Dimensions

• 70.5×44.2×32.8 mm (L×W×H)

• Weight

• 146 g

• Waterproof

• 20 m without the Waterproof Case, 60 m with the Waterproof Case

  ^{Before use, close the battery compartment cover and the USB-C port cover, and tighten the Glass Lens Cover. It is recommended to install the Waterproof Case for long-duration underwater shooting or in environments with high water impact pressure. Osmo Action 5 Pro and its Waterproof Case have an IP68 waterproof rating. Do not use the camera in hot springs or extreme underwater environments, or let it come into contact with corrosive or unknown liquids.}

• Number of Microphones

• 3

• Touchscreens

• Front Screen: 1.46-inch 331 ppi 342×342
  800 cd/㎡ max brightness (typical)

  Rear Screen: 2.5-inch 326 ppi 400×712
  800 cd/㎡ max brightness (typical), 1000 cd/㎡ peak brightness

• Supported SD Cards

• microSD (up to 1 TB)

• Recommended microSD Cards

• Recommended Models:
  SanDisk Extreme PRO 32GB U3 A1 V30 microSDHC
  Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC
  Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC
  Kingston CANVAS Go! Plus 256GB U3 A2 V30 microSDXC
  Kingston CANVAS Go! Plus 512GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 64GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 128GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 256GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 512GB U3 A2 V30 microSDXC
  Kingston CANVAS Go! Plus 1TB U3 A2 V30 microSDXC

Camera

• Sensor

• 1/1.3-inch CMOS

• Lens

• FOV: 155°
  Aperture: f/2.8
  Focus Range: 0.35 m to ∞

• ISO Range

• Photo: 100-25600
  Video: 100-51200

• Electronic Shutter Speed

• Photo: 1/8000-30 s
  Video: 1/8000 s to the limit of frames per second

• Max Photo Resolution

• 7296×5472

• Zoom

• Digital Zoom
  Photo: Max 2x
  Video: Max 2x
  Slow Motion/Timelapse: Not available

• Still Photography Modes

• Single: Approx. 40 MP
  Countdown: Off/0.5/1/2/3/5/10 s
  Burst: Up to 30 images/3 seconds

• Standard Recording

• 4K (4:3): 3840×2880@100/120fps
  4K (4:3): 3840×2880@24/25/30/48/50/60fps
  4K (16:9): 3840×2160@100/120fps
  4K (16:9): 3840×2160@24/25/30/48/50/60fps
  2.7K (4:3): 2688×2016@100/120fps
  2.7K (4:3): 2688×2016@24/25/30/48/50/60fps
  2.7K (16:9): 2688×1512@100/120fps
  2.7K (16:9): 2688×1512@24/25/30/48/50/60fps
  1080p (16:9): 1920×1080@100/120/200/240fps
  1080p (16:9): 1920×1080@24/25/30/48/50/60fps

• SuperNight

• 4K (16:9): 3840×2160@24/25/30fps
  2.7K (16:9): 2688×1512@24/25/30fps
  1080p (16:9)：1920 × 1080@24/25/30/48/50/60fps

• Subject Tracking

• 2.7K (16:9): 2688×1512@24/25/30/48/50/60fps
  2.7K (9:16): 2688×1512@24/25/30/48/50/60fps
  1080p (16:9): 1920×1080@24/25/30/48/50/60fps
  1080p (9:16): 1920×1080@24/25/30/48/50/60fps

• Slow Motion

• 4K: 4x (120fps)
  2.7K: 4x (120fps)
  1080p: 8x (240fps), 4x (120fps)

• Hyperlapse

• 4K/2.7K/1080p@25/30fps: Auto/×2/×5/×10/×15/×30

• Timelapse

• 4K/2.7K/1080p@25/30fps
  Intervals: 0.5/1/2/3/4/5/6/8/10/15/20/25/30/40 s, 1/2/5/30/60 mins
  Duration: 5/10/20/30 mins, 1/2/3/5 hours, ∞

• Stabilization

• EIS:
  RockSteady 3.0
  RockSteady 3.0+
  HorizonBalancing
  HorizonSteady

  ^{EIS is not supported in Timelapse and Slow Motion modes. HorizonSteady is only available when the video resolution is 1080p (16:9) or 2.7K (16:9) with a frame rate of 60fps or below. HorizonBalancing is only available when the video resolution is 1080p (16:9), 2.7K (16:9), or 4K (16:9) with a frame rate of 60fps or below.}

• Pre-Rec

• Pre-Recording Duration: 5/10/15/30/60 s

• Max Video Bitrate

• 100 Mbps

• Supported File System

• exFAT

• Photo Format

• JPEG/RAW

• Video Format

• MP4 (HEVC)

• Built-in Storage Capacity

• The camera features 64 GB of built-in storage, with 47 GB available for use. The storage capacity can be expanded by inserting a microSD card.

• Audio Recording

• 48 kHz 16-bit; AAC

Battery

• Type

• Li-ion 1S

• Capacity

• 1950 mAh

• Energy

• 7.5 Wh

• Voltage

• 3.87 V

• Operating Temperature

• -20° to 45° C

• Charging Temperature

• 5° to 40° C

• Operating Time

• 240 mins

  ^{Measured at a room temperature of 25° C, while recording 1080p/24fps (16:9) video, with RockSteady on, Wi-Fi off, and screens off. Data was collected in a controlled environment. Please refer to your actual experience.}

Connection

• Wi-Fi Operating Frequency

• 2.400-2.4835 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz

• Wi-Fi Protocol

• Wi-Fi 6.0
  802.11 a/b/g/n/ac/ax

• Wi-Fi Transmitter Power (EIRP)

• 2.4 GHz: < 23 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
  5.1 GHz: < 23 dBm (FCC/CE/SRRC/MIC)
  5.8 GHz: < 23 dBm (FCC/SRRC), < 14 dBm (CE)

• Bluetooth Operating Frequency

• 2.400-2.4835 GHz

• Bluetooth Transmitter Power (EIRP)

• < 13 dBm

• Bluetooth Protocol

• BLE 5.1
